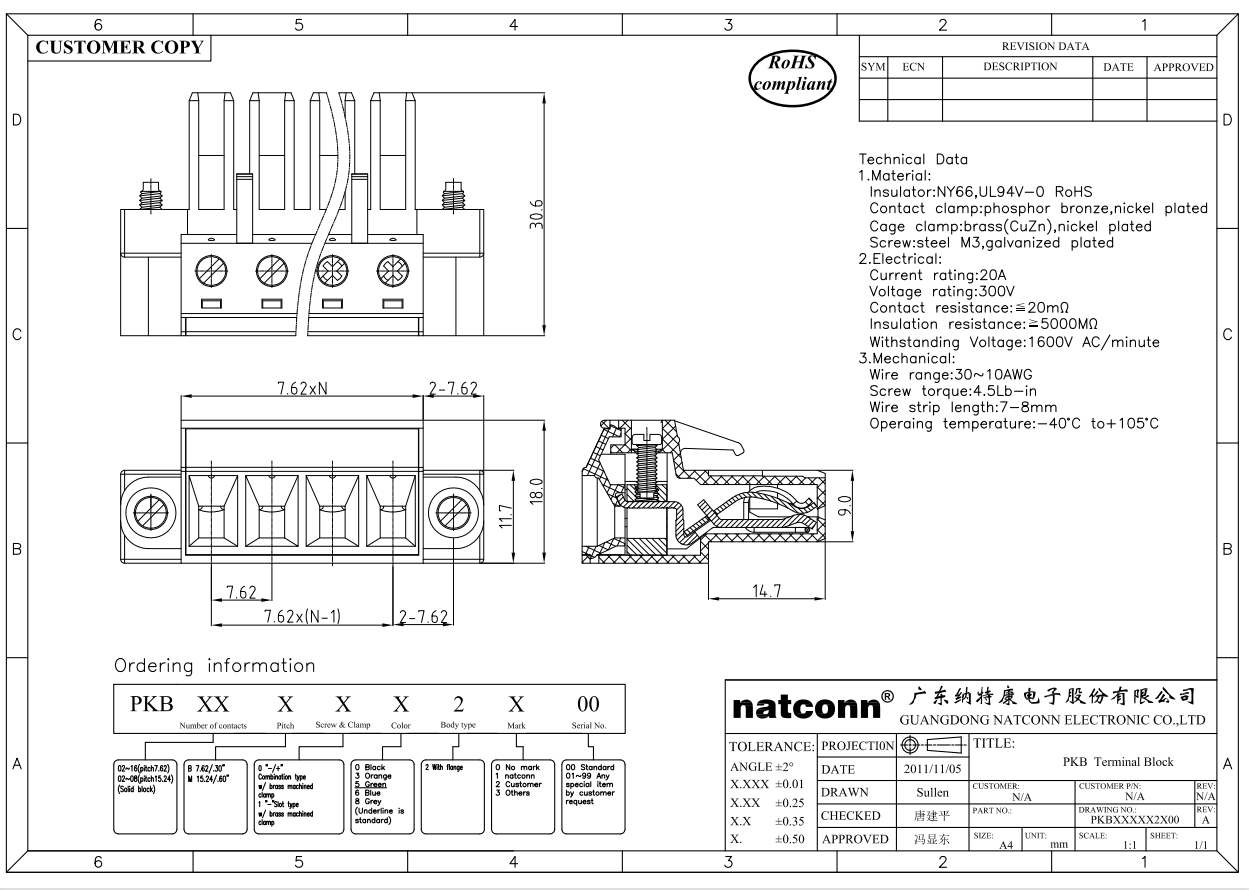

PKB762
This series include plug of screw locking and the scoket of PCB soldering, which provide 3.5, 3.81, 5.00, 5.08, 7.50, 7.62mm pitch. It has two wiring angles at horizontal and vertical, and the socket matches the 1/2/3/4-layered designs. This series is resistant to vibration and loosening. It's designed with big area for pressing and welding pin end is through hole type suitable for both wave soldering and manual welding. Product design is in accordance with some international standards, such as IEC60998 and UL1059. This series widely apply to the Industrial Control. Communication Industry, Electric Power, Medical & Security Industry and so on.
Message
Relevant Documents
-
File size: 960.0KB
Product Description
1. The product has obtained UL certification and CE certification;
2. High quality & environmental protection; Small spaceizes and low structure height can effectively save space;
3. Plug socket with anti-misplacement protection；
4. Different pin number option with 2P~24P;
5. Various options for color and can be customized.
Its application is the most extensive one, such as Frequency Conversion, CNC Panel, Access Controller, Sensor, PLC, Instrument, Power Supply, Servo Drive and so on.
PKB762
Terminal Blocks
UL
CE
