Products

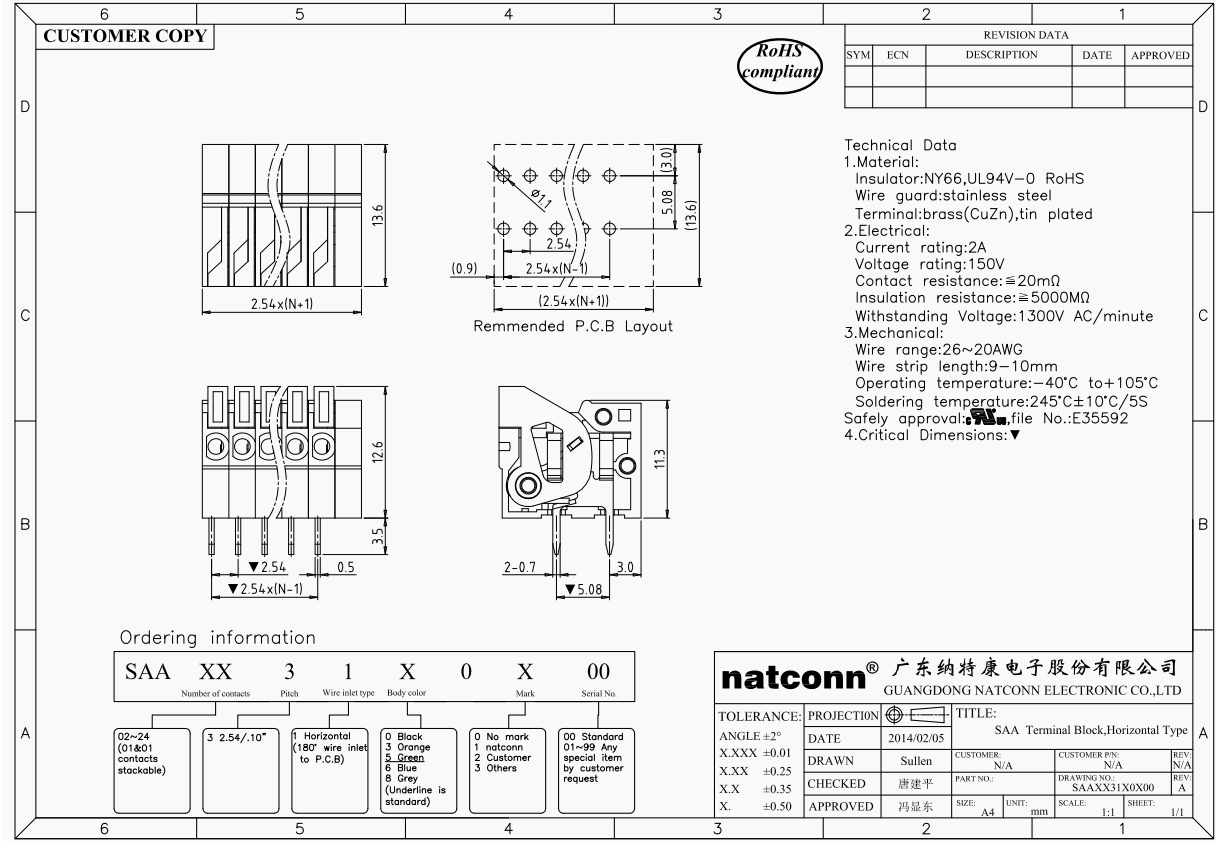

SAA254H
PN
:SAAXX31X0X00
Consulting
产品描述
| Specification Type | |
| Pitch | 2.54 |
| NO.of Positions | 2P~24P |
| Termination methods | - |
| Type | DIP |
| Material Properties | |
| Insulator | PA66 |
| Contact | Brass |
| Contact plating | TIN |
| Flammability | UL94 V0 |
| ROHS Compliant | ROHS |
| Technical Specs | |
| Current rating | 4A |
| Voltage rating | 150V |
| Withstanding voltage | 1.3KV |
| Contact resistance | 20m Max |
| Insulation resistance | 5000M Min |
| Wire range | 26-20 AWG |
| Insertion/Withdrawal force | - |
| Mechanical life cycle | 100 |
| Operating temperature | -40℃~125℃ |
| Safety Approval | |
| Standard of safety | UL1059 |
| Number | E355923 |
