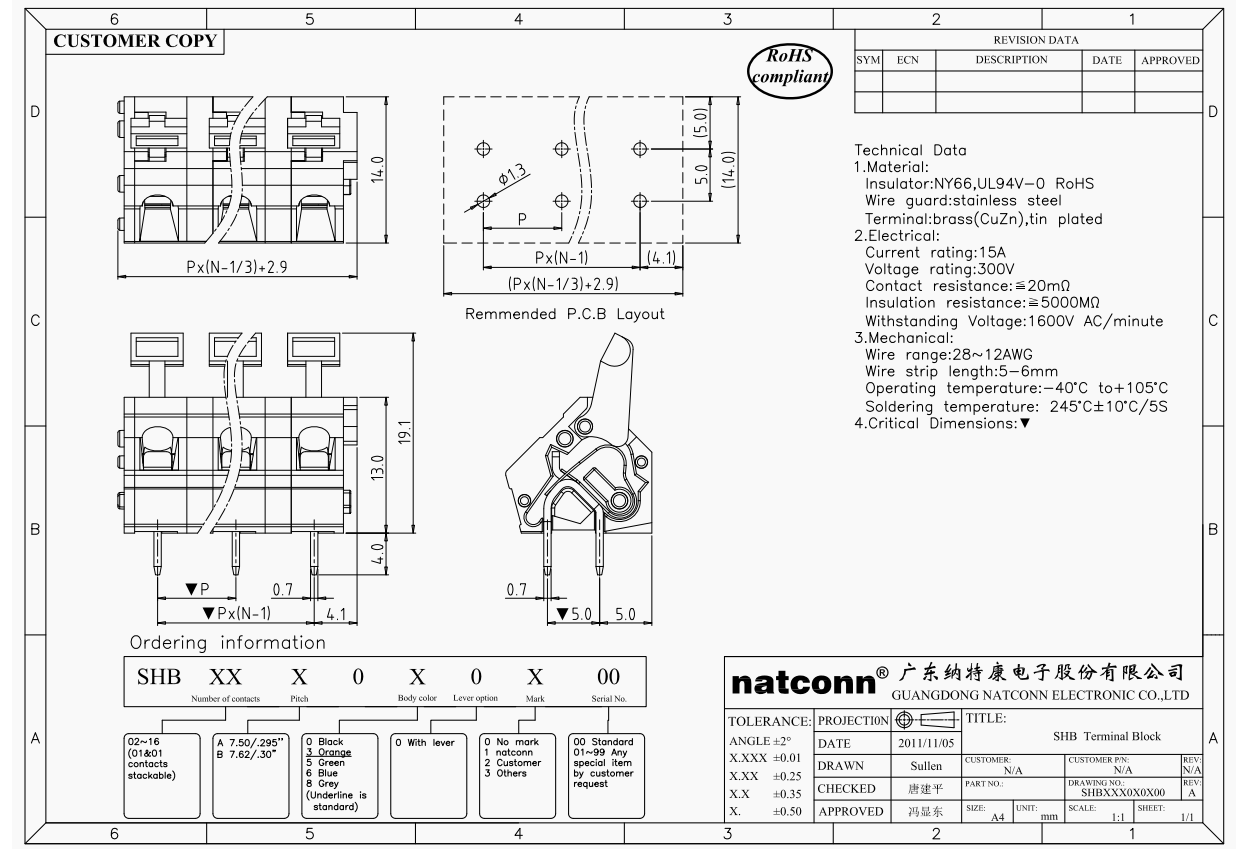

This series is Spring Clamp Type of printing PCB terminal block without locking screws. The wire can be inserted directly and locked up automatically, and pulled out by pressing the pressure bar. It has pitch like 2.54, 3.5, 3.81, 5.00, 5.08, 7.50, 7.62mm, etc. Spring Clamp type is all assembled by small pieces of componens. The way of inserting and pulling wires is quite conveniet and simple. Products' design follow management of IEC60998, UL1059 and some other international registration. It widely applied to Communication Industry, Lighting System, Security Industry and Home Applliances.
File size: 951.9KB
1. The product has obtained UL certification and CE certification;
2. High quality & environmental protection; Small spaceizes and low structure height can effectively save space;
3. Plug socket with anti-misplacement protection；
4. Different pin number option with 2P~24P;
5. Various options for color and can be customized.
Screw free terminal is widely used in Electronic Ballasts, Transformers, Electronic Appliances, Communications, New Energy and so on.
