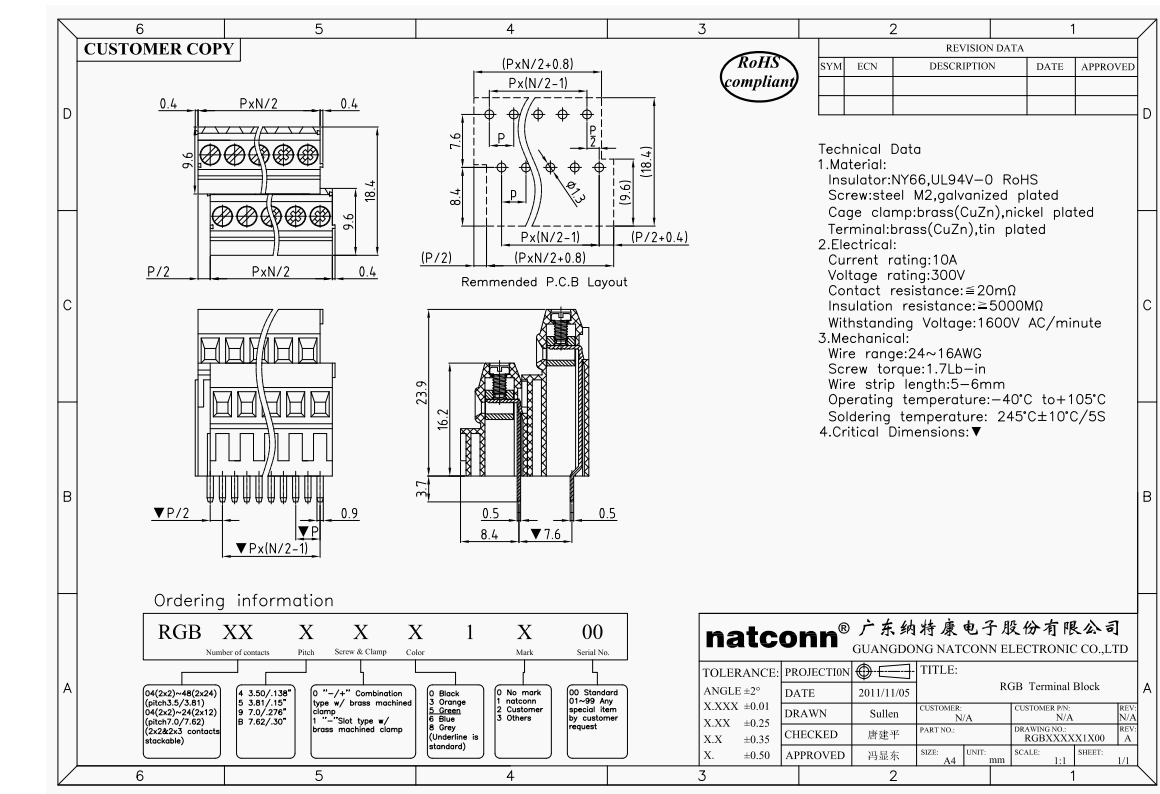

This series is PCB terminal blocks, which utilize clamp to press wire for locking. It provides 3.5, 3.81, 5.00, 5.08, 7.50mm pitch, and has some different wiring angles at horizontal (180), vertical (90) and bevel (135°) to match the 1/2/3/4-layered designs. Mainly take 2P/3P as the base and can be combined into any desired Pin numbers. This series is resistant to vibration and loosening. It's designed with big area for contacting and long-lasting in locking. The product design is in accordance with some international standards such as IEC60998 and UL1059. This series mainly apply to Scurity Systems, Lighting Systems and general electronic products.
File size: 974.9KB
1. The product has obtained UL certification and CE certification;
2. Complete product series, suitable for various occasions with high flexibility;
3. Rising Clamp Type ultilize clamp pressinf structure, ensuring the reliability of connection;
4. With splicing slot, the 2P and 3P terminals can be spliced into larger products freely;
5. Various options for color and can be customized.
Suitable for Power Supply, Frequency Converter and Industrial Control and Information Industry.
