Products

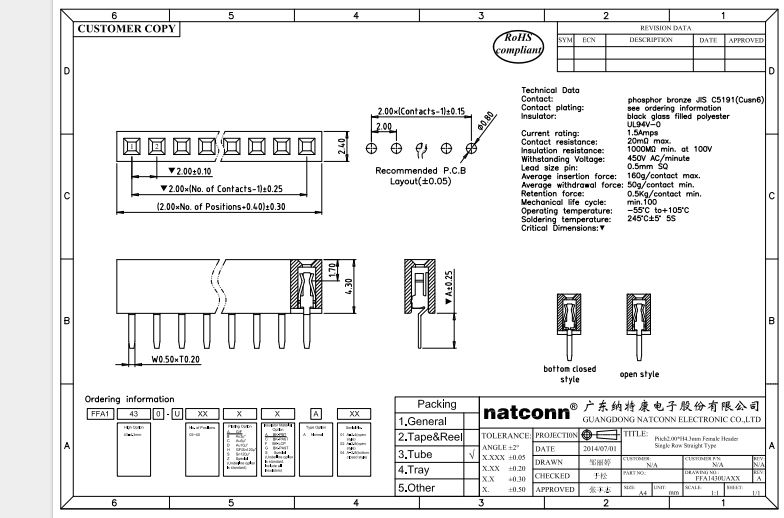

2.0 H4.3 Female Header Single 180°
PN
:FFA1430UAXX
Consulting
产品描述
| Specification Type | |
| Pitch | 2.00 |
| NO.of Positions | 50P |
| Termination methods | - |
| Type | DIP |
| Material Properties | |
| Insulator | PBT |
| Contact | phosphor bronze |
| Contact plating | AU |
| Flammability | UL94 V0 |
| ROHS Compliant | ROHS |
| Technical Specs | |
| Current rating | 1.5A |
| Voltage rating | - |
| Withstanding voltage | 450V |
| Contact resistance | 20mΩ Max |
| Insulation resistance | 1000MΩ Min at 100V |
| Wire range | - |
| Insertion/Withdrawal force | - |
| Mechanical life cycle | - |
| Operating temperature | -55℃~105℃ |
| Safety Approval | |
| Standard of safety | UL1977 |
| Number | - |
